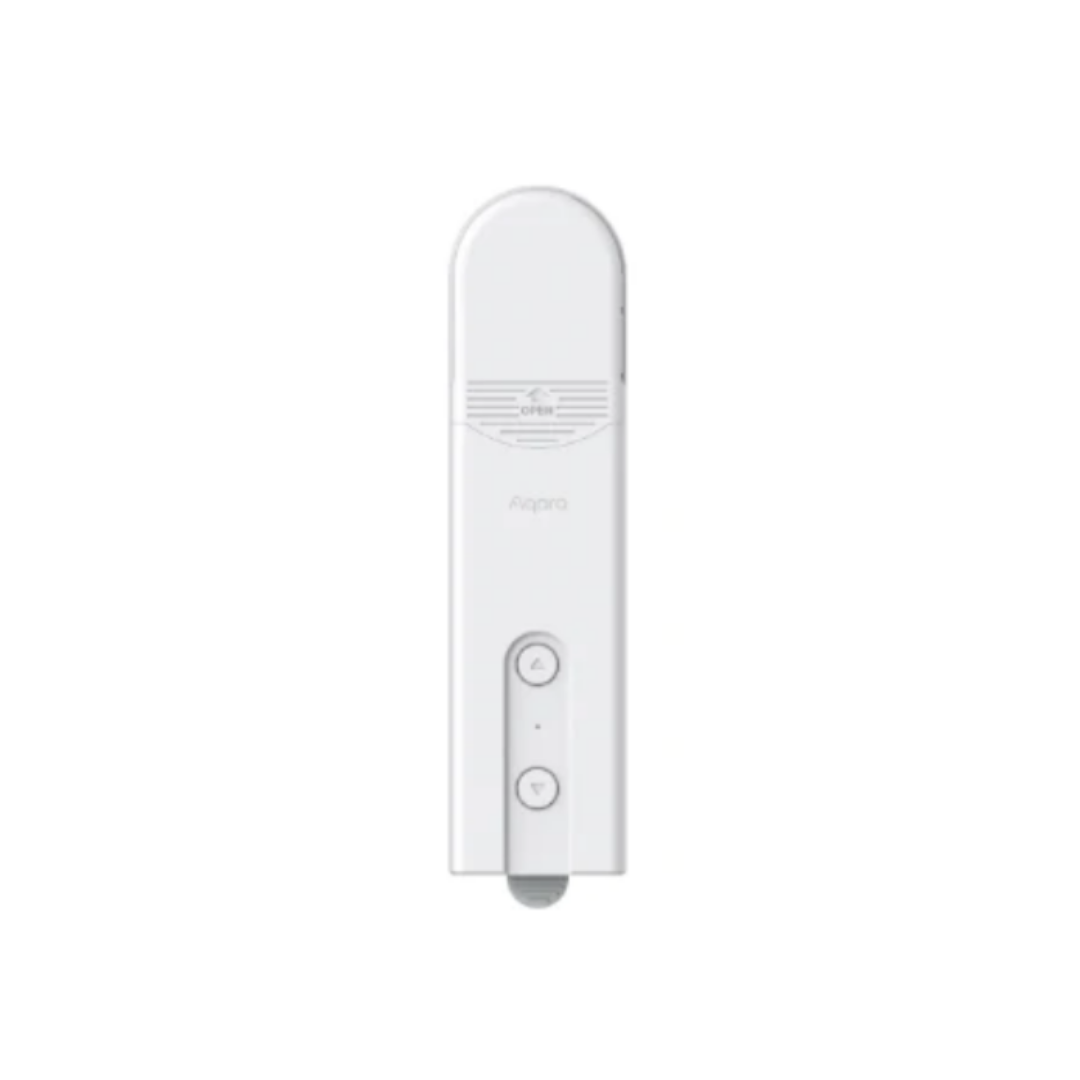

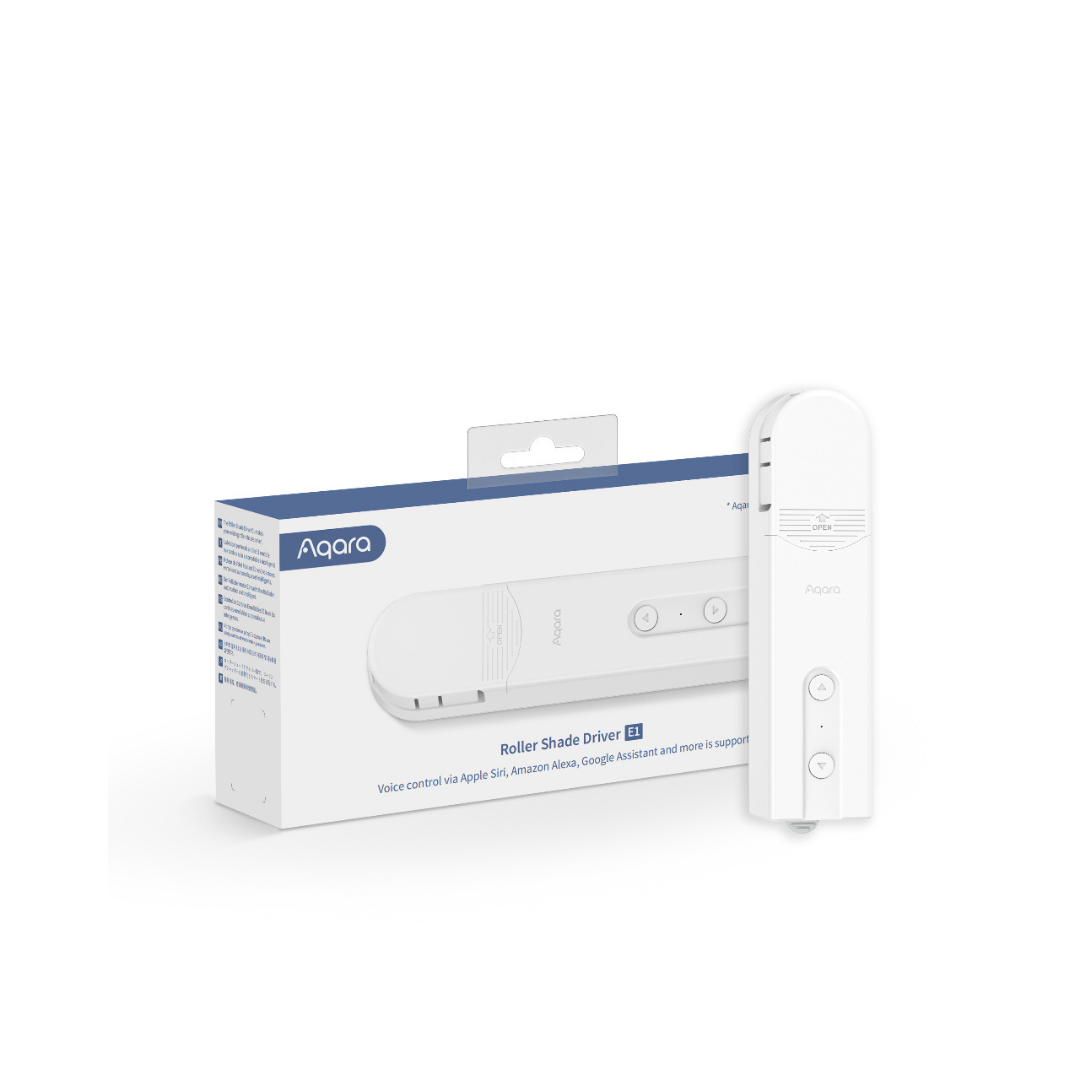

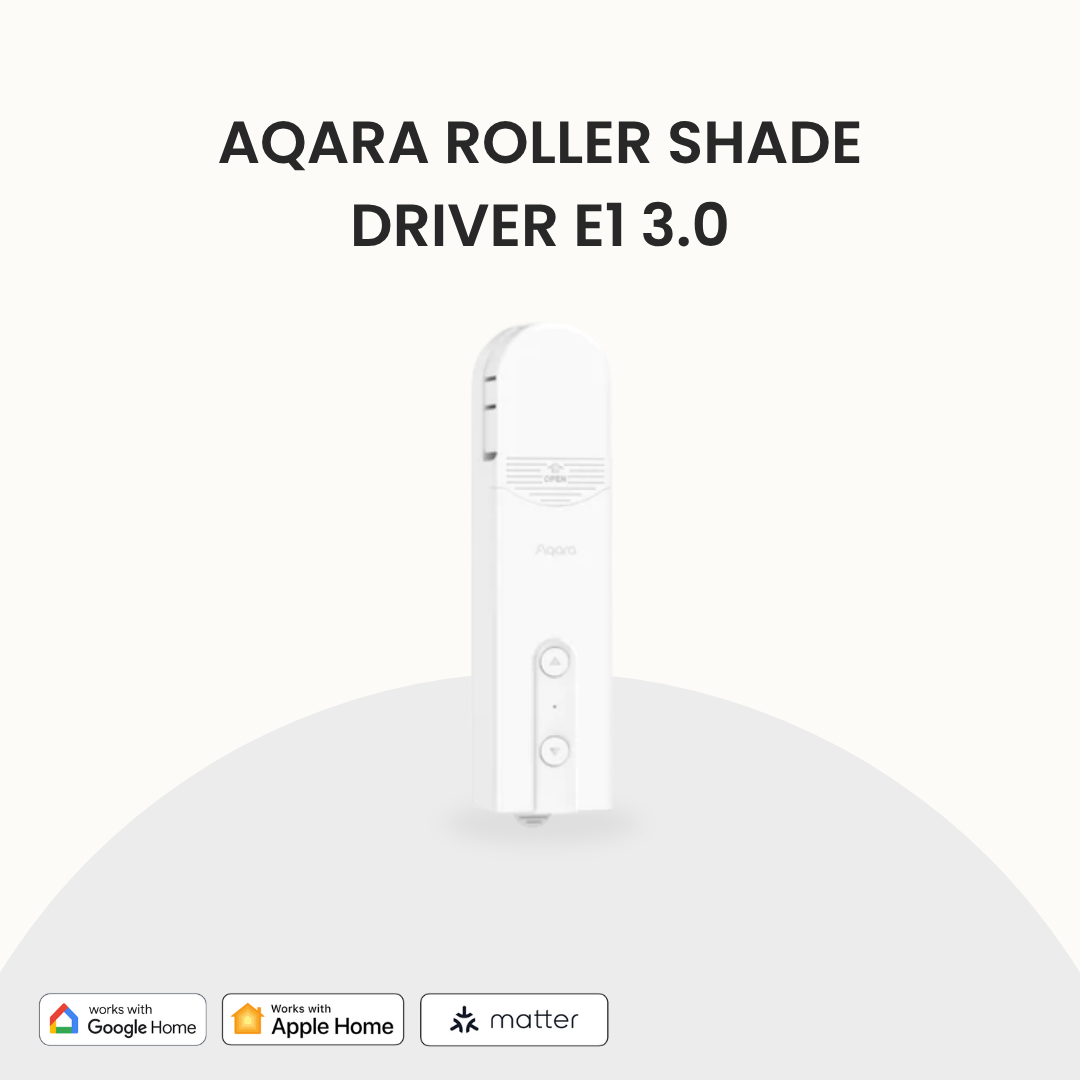

Aqara Roller Shade Driver E1 3.0
Aqara Roller Shade Driver E1 3.0
Description
Works with your existing roller shades by driving the beaded cord.
Wired or wireless, it's your choice. It's probably the easiest way to make ""non-smart"" furnishings, smart. Set pre-definied positions, scenes or automate with your preferred smart home app.
Features:
✅ Easy Installation: Just screw the device to the wall, attach the adapter, insert the beaded cord of your roller shade, and the device will be ready to be connected.
✅ Zigbee 3.0 Protocol: Enjoy the benefits of the fastest, most stable, and energy-efficient smart home technology. Better stability and compatibility (more standardized protocol), longer support, and more features.
✅ All-Round Compatibility: Compatible with most popular ecosystems and can be controlled by voice. HomeKit, Alexa, Google, IFTTT, Alice, Marusya are supported.
✅ User-Defined Opening/Closing: The user will be able to pre-set a number of desired open/close percentages and switch between them easily.
✅ 2-Month Battery Life*: Thanks to Aqara battery-saving technologies, industry-leading battery life is achieved. You don't need to worry about charging the device every few weeks.
✅ USB Type-C for Charging or Constant Power Supply: You can choose between two installation modes: wired and wireless. For charging or powering the device constantly, the most modern and versatile Type-C port is used.
✅ One-Button Control: Thanks to the Aqara Home app, the full operation of your roller shade can be done by pressing only one button such as the Aqara Mini Switch.
✅ Smart Home Automation: Connect the device to the Aqara Home app, and you will be able to forget about operating the device manually: after configuring the automation, it will just work by itself!
Note: 4 Adapters for Different Types of Beaded Cords: The majority of roller shades with beaded cords are supported due to a variety of included adapters.
Specifications
Specifications
Color : White
Model : RSD-M01
Wireless Protocol : Zigbee 3.0 IEEE 802.15.4
Dimensions : 42×37×165 mm (1.69×1.52×6.89 in.)
Operating Temperature : -10°C ~ 55℃ (14°F ~ 131°F)
Operating Humidity : 0 ~ 95% RH, no condensation
Battery Type : Lithium battery (not replaceable)
Input Power : 5V⎓1A
Total Power Consumption : 5W
Standby Time : Two months (supposed to control a roller shade of1.8m*1.8m up and down once a day)
Standard : GB/T 12350-2009
Warranty: 2 years
