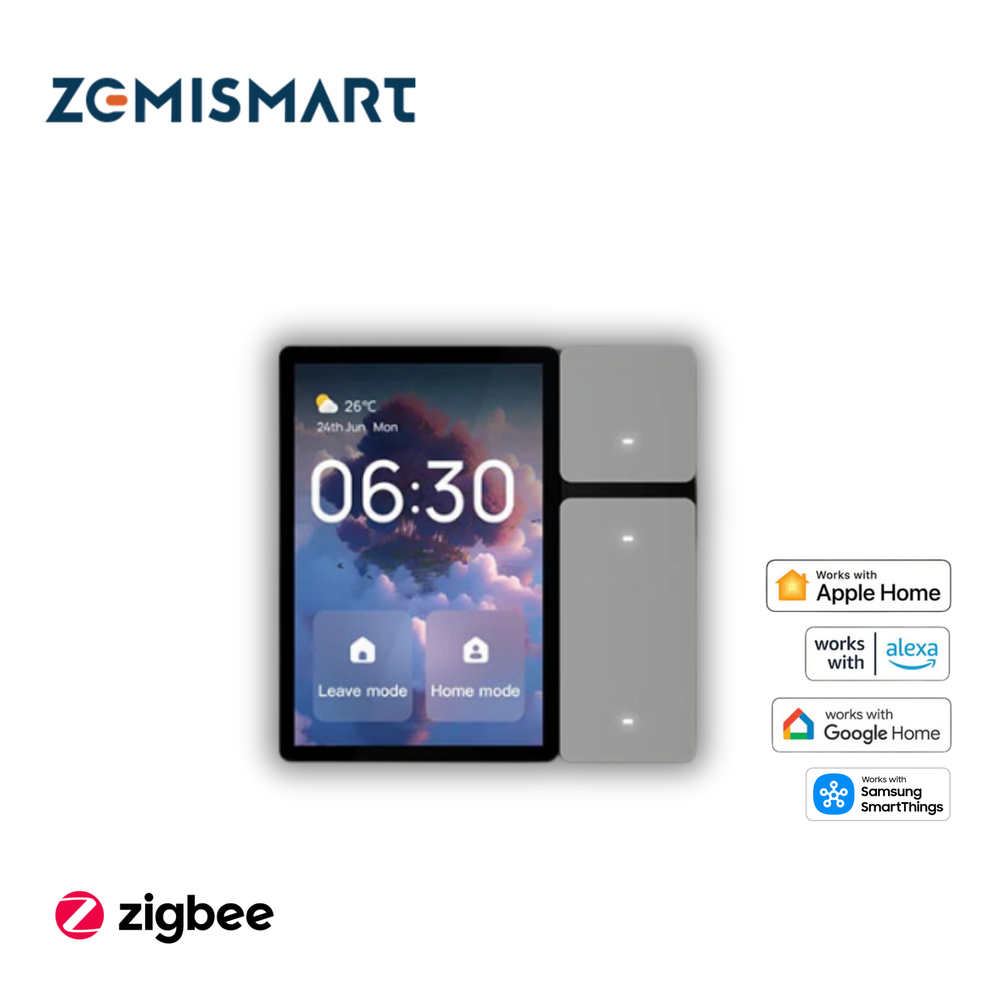

Zemismart Smart Multi-Functional Control Panel TPP06

Zemismart TPP06 combines a 3-gang relay, infrared remote, camera viewing, door unlocking, and security alarm features into one smart control panel for seamless home automation and security.
Zemismart Smart Multi-Functional Control Panel TPP06
Enquiry Now

Part of a Connected Home System

Works with

Alexa Alexa
Google Home Google Home
Apple Home Apple Home
Home Assistant Home Assistant

System Requirements

Protocol
Tuya
Zigbee
Wi-Fi 2.4GHz
BLE Mesh
Subscription Required —

Explore Features

Compact Zemismart TPP06 panel combines a 3.5-inch touchscreen with three physical shortcut buttons.

Three built-in relay channels provide direct control for compatible hardwired lighting circuits.

Integrated infrared emitters control compatible air conditioners, televisions and other IR appliances.

The BLE Mesh gateway manages up to 128 compatible sub-devices through touch, scenes and the Tuya app.

Chat with us Book a convenient time
%} %}

Technical Specifications

General

Brand
Zemismart
Model
TPP06
Warranty
1 year
Color
Black / Graphite

Physical

Dimensions
86 × 86 × 11.5 mm without base; 86 × 86 × 35.5 mm with base
Battery Type
N/A (hardwired AC)

Technical

Installation
Flush in-wall mounting in a standard 86-type wall box; neutral wire required
Display
3.5-inch IPS LCD capacitive touchscreen, 480 × 320 resolution
Number of Gangs
3 relay channels
Maximum Load
600W total; 200W per channel
Power Supply
AC 100-240V, 50/60Hz
Gateway Capacity
Up to 128 BLE Mesh sub-devices
IR Control
Built-in infrared emitters supporting 12 appliance categories
Physical Buttons
3
Operating Temperature
0°C to 40°C
Operating Humidity
5%-90% RH, non-condensing
