Zemismart Smart Multi-Functional Control Panel F8

Zemismart F8 Smart Control Panel lets you manage scenes, adjust lighting brightness and colour temperature, and enjoy built-in speaker functionality. All from one sleek touchscreen for a smarter, m...
Zemismart Smart Multi-Functional Control Panel F8
Enquiry Now

Part of a Connected Home System

Works with

Alexa Alexa
Google Home Google Home
Apple Home Apple Home
Home Assistant Home Assistant

System Requirements

Protocol
Tuya
Wi-Fi 2.4GHz
Zigbee
Bluetooth
Matter via Hub
Subscription Required —

Explore Features

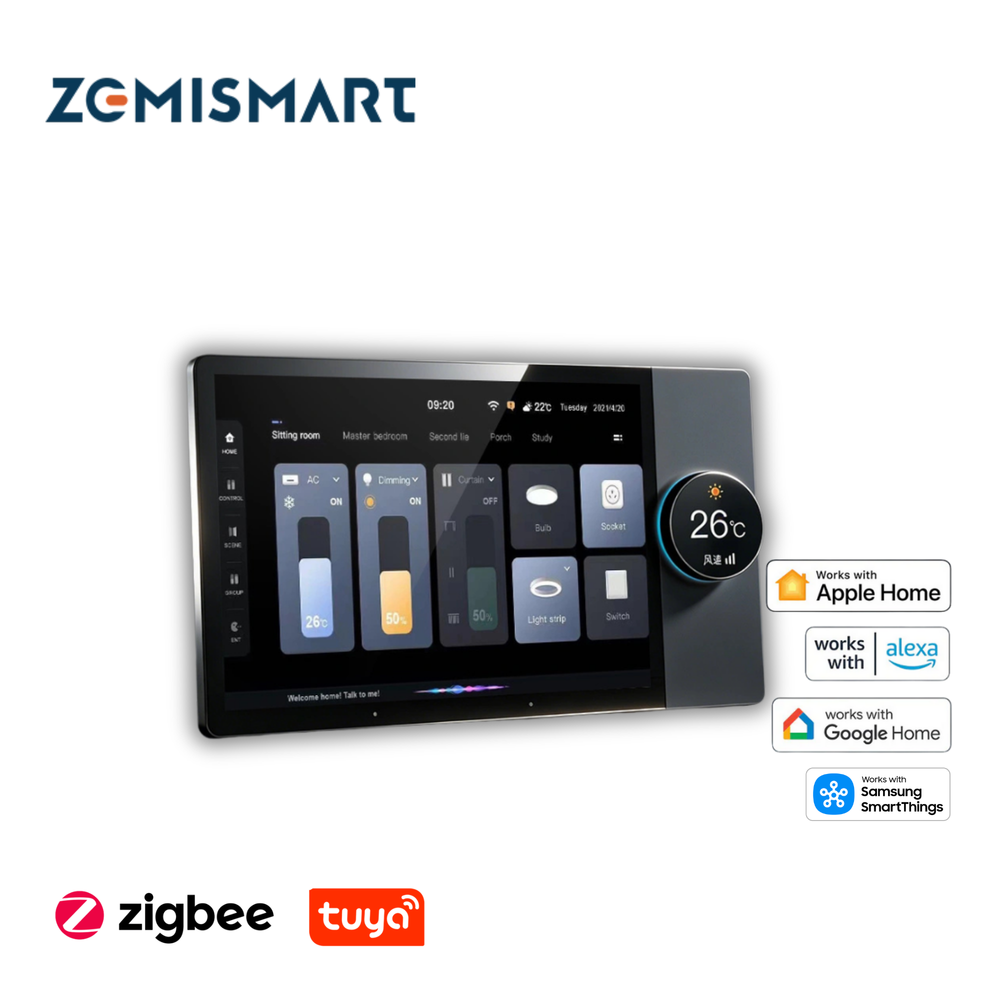

Zemismart F8 control panel pairs an 8-inch IPS touchscreen with a circular secondary display and rotary knob.

The central dashboard controls compatible lighting, curtains, air conditioning, devices and smart scenes.

Built-in audio functions and wired speaker outputs turn the panel into a background music controller.

The rotary display adjusts lighting, curtains, air conditioning and volume while supporting up to ten scenes.

Chat with us Book a convenient time
%} %} %}

Technical Specifications

General

Brand
Zemismart
Model
F8
Material
PC + aluminum alloy
Warranty
1 year
Color
Black

Physical

Dimensions
250 × 133 × 11.5 mm (front panel; rear housing excluded)
Weight
~1.1 kg
Battery Type
N/A (hardwired AC)

Technical

Installation
In-wall mounting with dual UK 86-type bottom boxes; neutral wire required
Operating System
Android 8.1
Memory
2GB RAM + 8GB storage
Scene Control
Up to 10 scenes
Relay Output
2-gang, up to 200W per channel depending on supplied configuration
Speaker Output
2 × 10-25W, 4-8Ω, four-channel configurations may be available
Power Input
AC 100-240V, 50/60Hz
Voice Control
Supported, assistant availability varies by firmware and region
