Zemismart Smart Multi-Functional Control Panel F3pro-G

A 3.5-inch smart control panel with a built-in 4-gang switch, Zigbee connectivity, and X-band human presence radar. Control lights and smart devices from one sleek interface, with reliable local op...
Zemismart Smart Multi-Functional Control Panel F3pro-G
Enquiry Now

Part of a Connected Home System

Works with

Alexa Alexa
Google Home Google Home
Apple Home Apple Home
Home Assistant Home Assistant

System Requirements

Protocol
Zigbee (IEEE 802.15.4); Tuya Zigbee gateway required
Subscription Required —

Explore Features

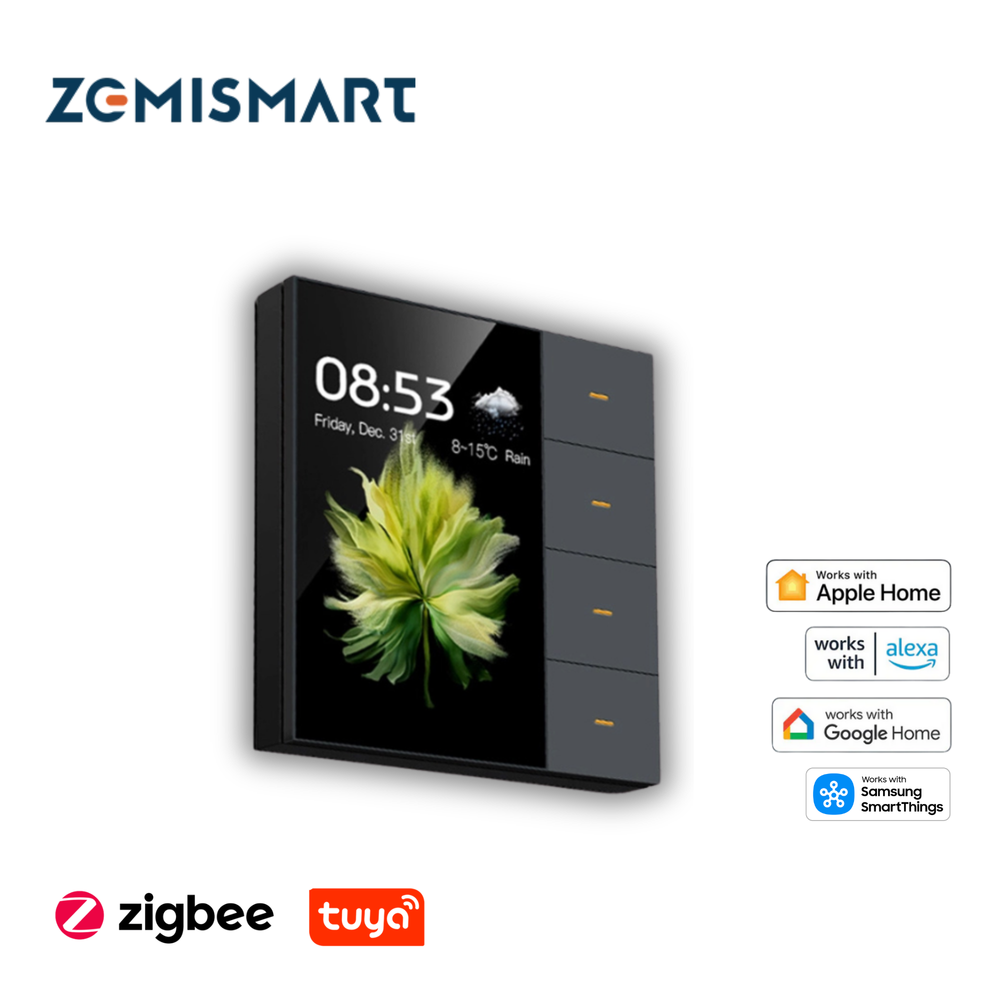

Zemismart F3pro-G wall panel with a 3.5-inch touchscreen and four physical shortcut buttons.

One panel provides four lighting relays, four dimming controls and four curtain control groups.

Eight custom scene controls provide quick access to frequently used whole-room smart home settings.

Built-in 24GHz radar wakes the display when a person approaches for faster hands-on control.

Chat with us Book a convenient time
%} %} %}

Technical Specifications

General

Brand
Zemismart
Model
F3pro-G
Material
ABS + PC
Warranty
1 year
Color
Black / Graphite

Physical

Dimensions
Fits UK standard 86 bottom shell
Weight
Not officially specified
Battery Type
N/A (hardwired AC)

Technical

Installation
In-wall mounting with UK standard 86-type bottom box
Display
3.5-inch screen, 320 × 480 resolution
Number of Gangs
4-gang relay
Power Supply
AC 90-250V, 50Hz
Neutral Wire
Required
Dimming Control
4 groups with brightness and color temperature adjustment
Curtain Control
Up to 4 groups
Scene Control
8 scenes
Radar Sensor
24GHz X-band human proximity sensing
Physical Buttons
4
