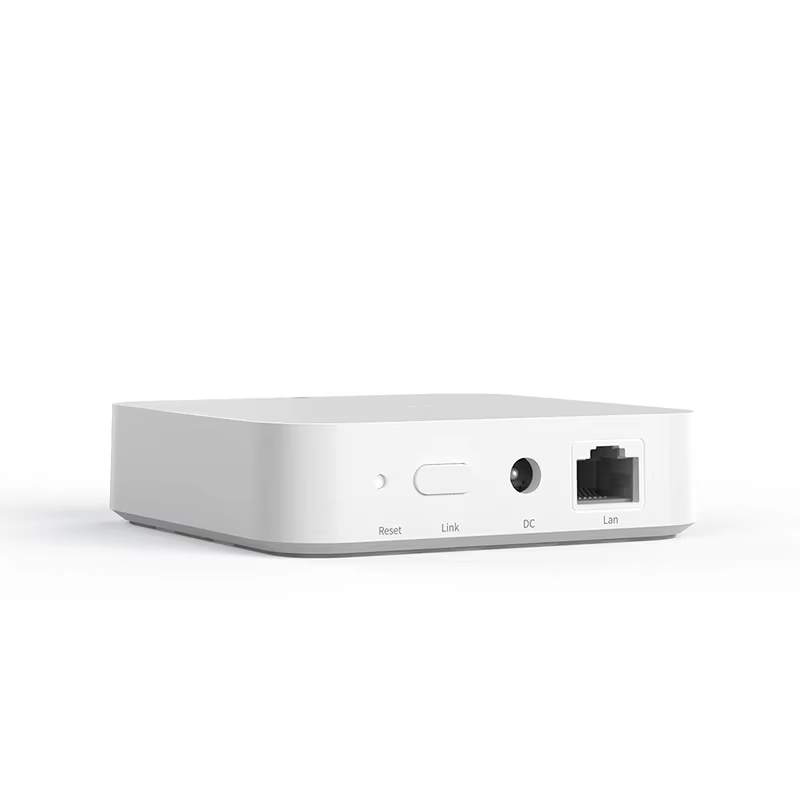

YEELIGHT Mesh Gateway (GLOBAL)

Compact Yeelight BLE Mesh Gateway Hub that connects Yeelight Bluetooth mesh lights to your 2.4GHz Wi-Fi/LAN network for app, voice assistant, and HomeKit-compatible control.
YEELIGHT Mesh Gateway (GLOBAL)
YEELIGHT Mesh Gateway (GLOBAL)
YEELIGHT Mesh Gateway (GLOBAL)
YEELIGHT Mesh Gateway (GLOBAL)
A black smart home speaker device with a circular mesh grille and a glowing multicolor iris sensor in the center, shown on a white background with Siri movie mode text.
YEELIGHT Mesh Gateway (GLOBAL)
YEELIGHT Mesh Gateway (GLOBAL)
YEELIGHT Mesh Gateway (GLOBAL)
YEELIGHT Mesh Gateway (GLOBAL)
A black smart home speaker device with a circular mesh grille and a glowing multicolor iris sensor in the center, shown on a white background with Siri movie mode text.
$59.90

Part of a Connected Home System

Works with

Alexa Alexa
Google Home Google Home
Apple Home Apple Home
Home Assistant Home Assistant

System Requirements

Protocol
Bluetooth BLE Mesh
Wi-Fi 2.4GHz
Subscription Required —

Explore Features

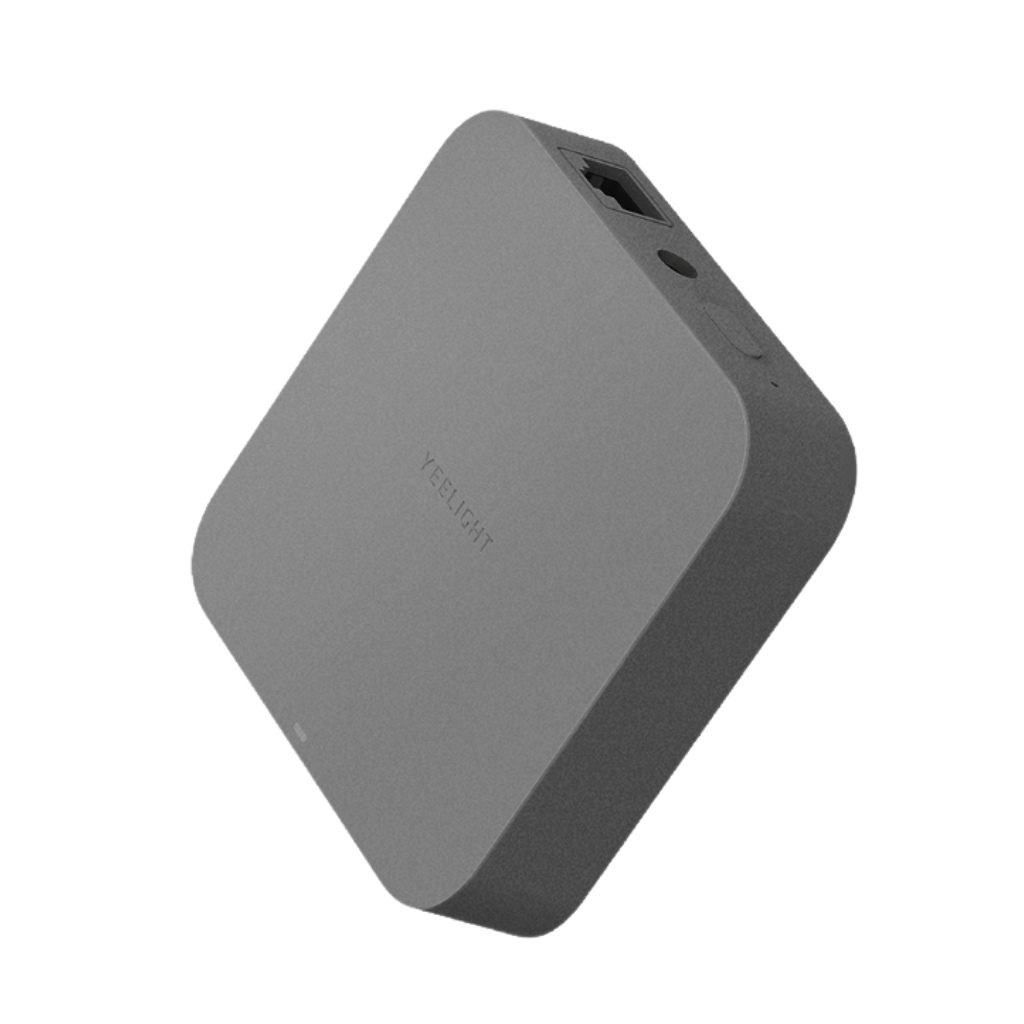

Compact Yeelight Mesh Gateway bridges Bluetooth mesh lights to your Wi Fi network for seamless app and voice control

Compact Yeelight Mesh Gateway bridges Bluetooth mesh lights to your Wi Fi network for seamless app and voice control

Connects multiple Yeelight M2 downlights and other BLE mesh lights so they respond instantly from anywhere via Yeelight or Mi Home apps

Connects multiple Yeelight M2 downlights and other BLE mesh lights so they respond instantly from anywhere via Yeelight or Mi Home apps

Dual mode LAN and Wi Fi operation gives you flexible network options and lower latency control of your entire mesh lighting setup

Dual mode LAN and Wi Fi operation gives you flexible network options and lower latency control of your entire mesh lighting setup

HomeKit compatible gateway makes Yeelight mesh lights accessible through Apple Home app and Siri voice commands

HomeKit compatible gateway makes Yeelight mesh lights accessible through Apple Home app and Siri voice commands

%} %} %}

Technical Specifications

General

Brand
Yeelight
Model
YLWG01YL
Material
ABS plastic
Warranty
2 years

Physical

Dimensions
84 × 84 × 21 mm
Weight
150-270 g (varies by source)
Battery Type
N/A (USB-powered)

Technical

Installation
Free-standing (desktop)
Power Input
5V 1A (USB micro, adapter not included in some sources)
Power Consumption
5W
Connectivity
Wi-Fi 2.4GHz, Bluetooth BLE Mesh, LAN port (RJ45)
Device Capacity
50-100 devices typical
Range (BLE)
Up to 10m (40m open space)
Local Automation
Yes (LAN mode supported)
Power Over Ethernet (POE)
No
Backup Power
No
Operating Temperature
0°C to 40°C
Operating Humidity
5-95% RH (non-condensing)
Control Type
App Control (Yeelight app, Mi Home app), Voice Assistant (Alexa/Google), Siri (HomeKit)
Compatibility
Yeelight app, Mi Home (Xiaomi Home), Apple HomeKit, Google Assistant, Amazon Alexa, Samsung SmartThings
Protocols
Bluetooth Mesh, Wi-Fi 802.11 b/g/n (2.4GHz), LAN (Ethernet)
Features
WLAN + Wi-Fi dual access modes, 2×2 MIMO wireless technology, USB-C port, OTA updates
Usage
Bridges Yeelight Bluetooth Mesh lights to Wi-Fi for remote control
