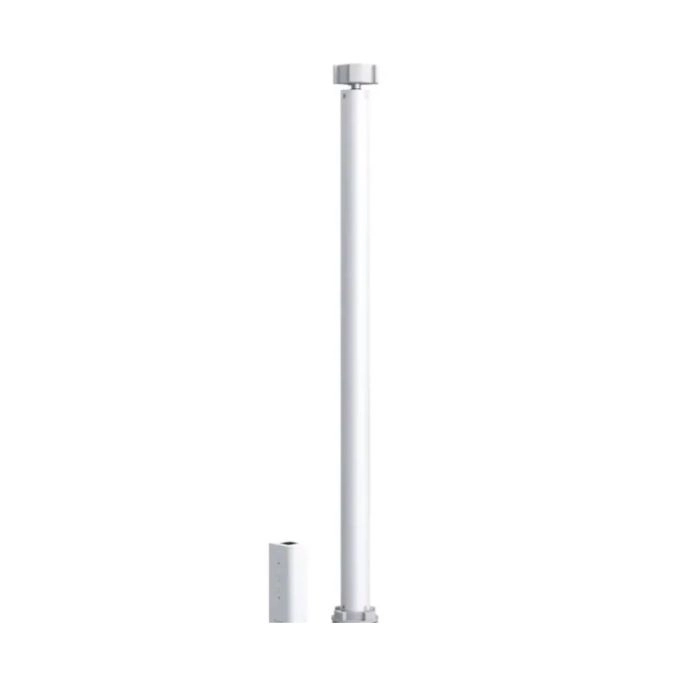

AQARA Roller Shade Controller T1S (Global version) 26

Built-in motor controller for tubular roller shades. Professional install, high torque, quiet.
AQARA Roller Shade Controller T1S (Global version) 26
AQARA Roller Shade Controller T1S (Global version) 26
AQARA Roller Shade Controller T1S (Global version) 26
AQARA Roller Shade Controller T1S (Global version) 26
AQARA Roller Shade Controller T1S (Global version) 26
AQARA Roller Shade Controller T1S (Global version) 26
$299.00
Size: Small
Color: White

Part of a Connected Home System

Aqara

Aqara

Explore more products from Aqara

Browse Collection

Works with

Alexa Alexa
Google Home Google Home
Apple Home Apple Home
Home Assistant Home Assistant

System Requirements

Protocol
Zigbee 3.0
Subscription Required Yes

Explore Features

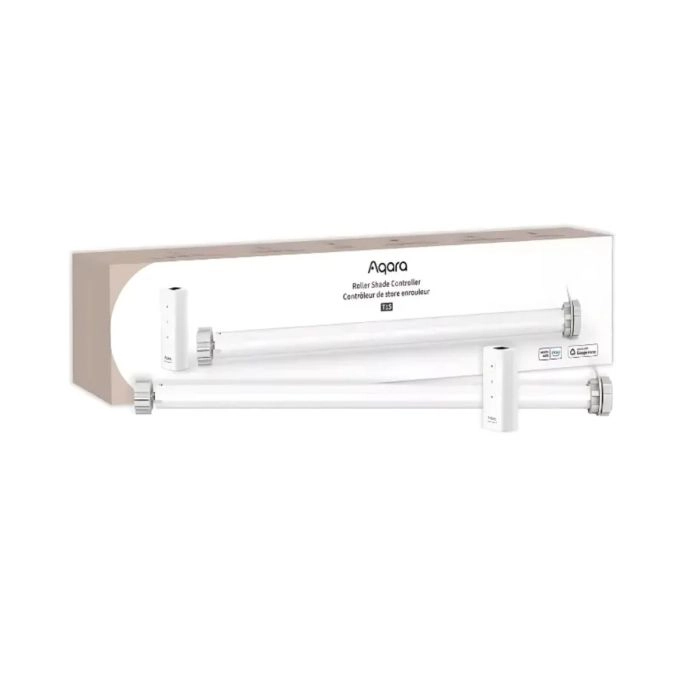

Tubular motor installed inside shade tube

Tubular motor installed inside shade tube

Supports position control (open/close percentage)

Supports position control (open/close percentage)

Max shade width 3m, max weight 10kg

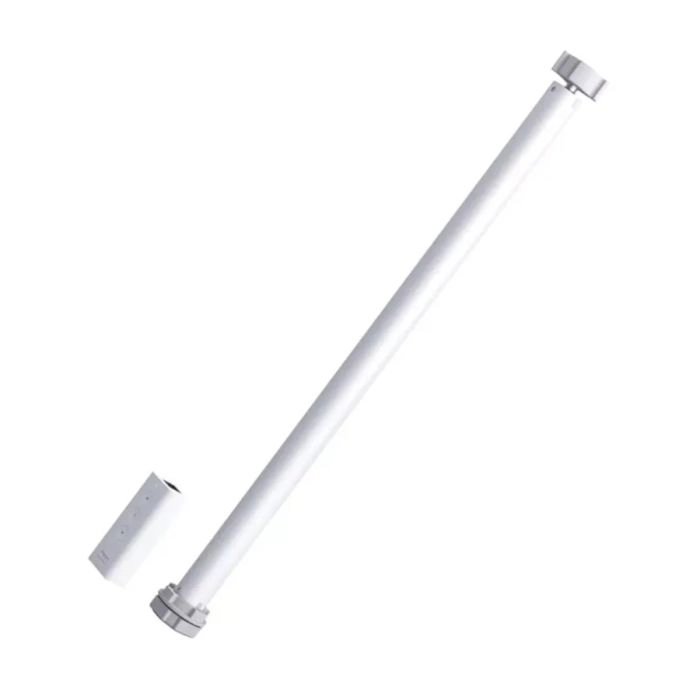

Quiet operation ≤28dB, 20 rpm speed

Quiet operation ≤28dB, 20 rpm speed

%} %} %} %}

Technical Specifications

General

Brand
Aqara
Model
Roller Shade Controller T1S (CD-M03D)
Material
Metal housing
Warranty
12-24 Months

Physical

Dimensions
25 × 25 × 465 mm (motor only)
Weight
Not specified
Battery Type
N/A (hardwired 100-240V AC → 24V DC 1.5A)
Maximum Curtain Weight
10kg

Technical

Installation
Inside shade tube (38mm pipe diameter)
Motor Type
Built-in tubular
Operating Noise
≤27dB
Power Supply
100-240V AC, 20W rated
Opening Speed
25 r/min
Rated Torque
1.5 N·m
Operating Temp
-20°C ~ 55°C
IP Rating
IP40
Protocol
Zigbee 3.0, Bluetooth 5.0, Matter-over-Bridge
