AQARA Panel Hub S1 Plus

Wall-mounted smart panel hub with touchscreen control, Zigbee hub functionality, scene management, lighting control, and centralized device access.
AQARA Panel Hub S1 Plus

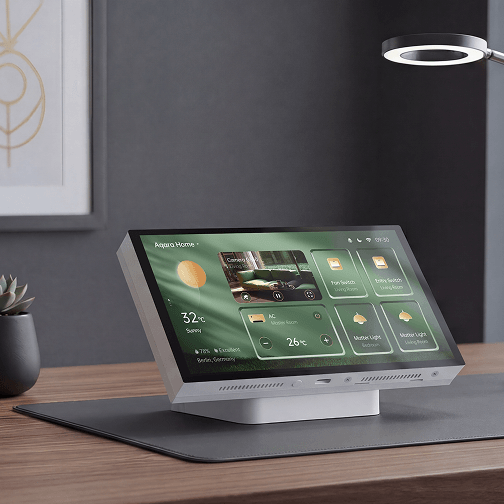

Smart home control panel on a desk with a lamp and plant in the background
AQARA Panel Hub S1 Plus
AQARA Panel Hub S1 Plus

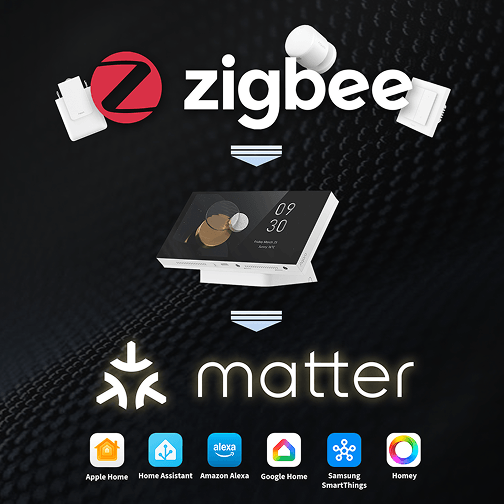

Zigbee and Matter logos with device illustration on a dark background
AQARA Panel Hub S1 Plus
Smart home control panel on a desk with a lamp and plant in the background
AQARA Panel Hub S1 Plus
AQARA Panel Hub S1 Plus
Zigbee and Matter logos with device illustration on a dark background
$699.00

Part of a Connected Home System

Aqara

Aqara

Explore more products from Aqara

Browse Collection

Works with

Alexa Alexa
Google Home Google Home
Apple Home Apple Home
Home Assistant Home Assistant

System Requirements

Protocol
Zigbee 3.0
Matter
Wi-Fi
Bluetooth
Subscription Required —

Explore Features

White finish panel with high-resolution touchscreen for EU electrical boxes

White finish panel with high-resolution touchscreen for EU electrical boxes

Built-in Zigbee 3.0 hub and Matter bridge – controls up to 60 Aqara devices

Built-in Zigbee 3.0 hub and Matter bridge – controls up to 60 Aqara devices

Two electrical relays for direct lighting circuit control

Two electrical relays for direct lighting circuit control

Six programmable wireless scene switches via touchscreen interface

Six programmable wireless scene switches via touchscreen interface

%} %} %}

Technical Specifications

General

Brand
Aqara
Model
Panel Hub S1 Plus EU (AK153EUW01)
Material
Plastic + glass
Warranty
1 Year (12 Months)

Physical

Dimensions
86 × 86 × 42 mm (body)
Weight
358g
Battery Type
N/A (hardwired)

Technical

Installation
In-wall (EU 86mm box)
Maximum Load
10A per relay (2200W incandescent / 400W LED)
Number of Gangs
2 electrical relays
Neutral Wire
Required
Rocker Type
Touchscreen. Screen: 6.9-inch, 1440×720
Built-in Hub
Zigbee 3.0 + Matter bridge
