AQARA Multi-State Sensor P100

Detects multiple states including open/close, tilt, vibration, and temperature. Ideal for windows, doors, garage doors, and cabinets. Works with Aqara Hub via Zigbee.

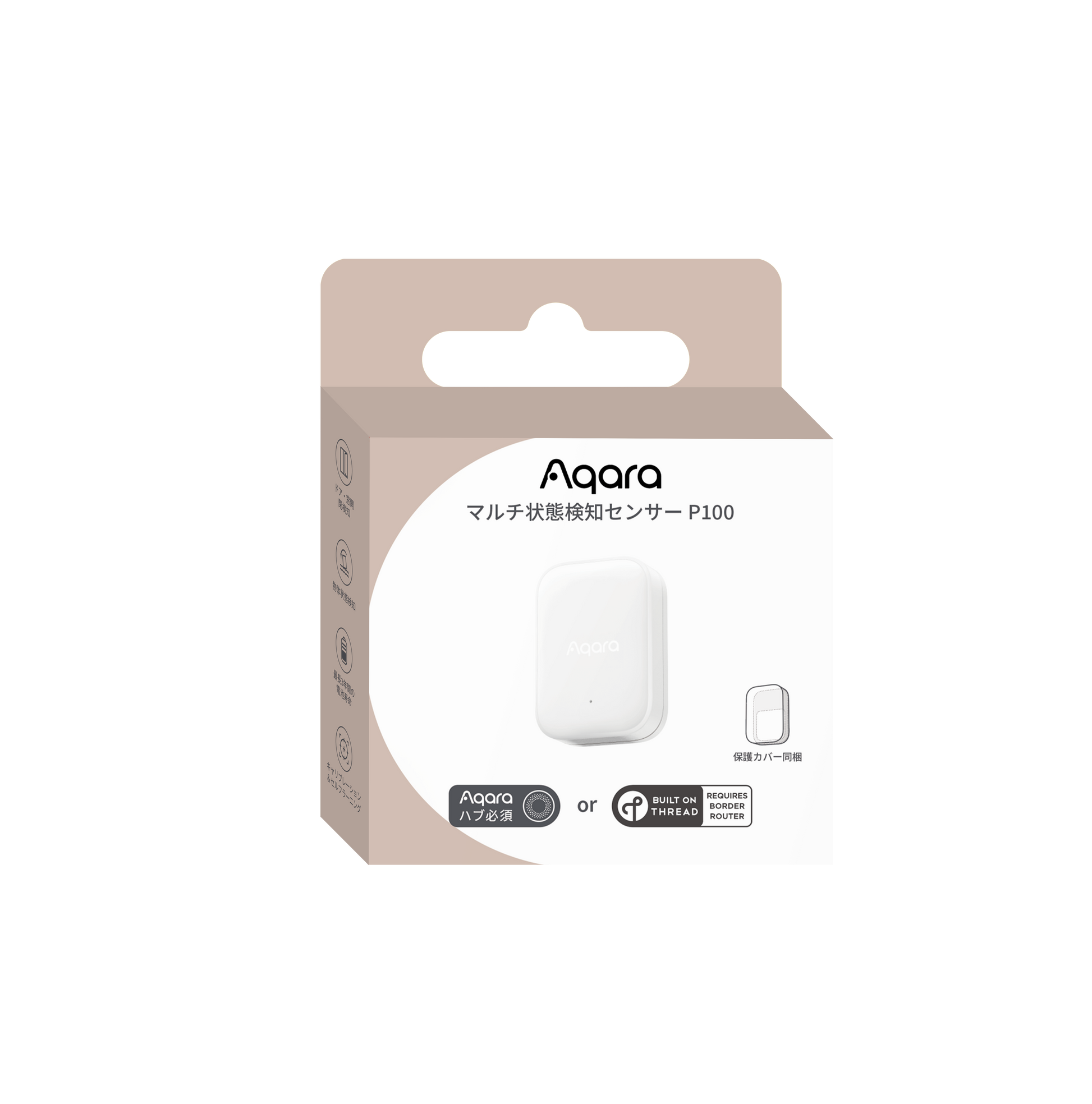

Multi-State Sensor P100 packaging

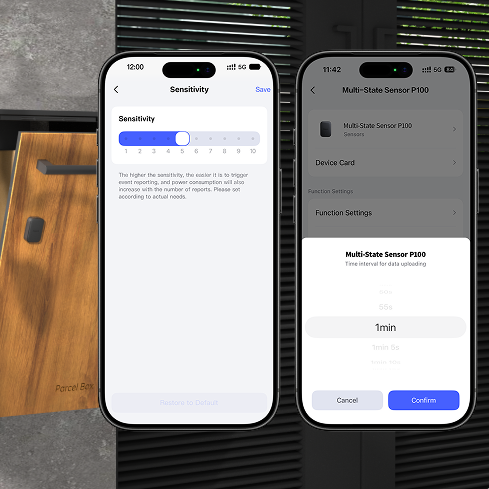

Phone case with smartphone displaying the app interface for the Multi-State Sensor P100

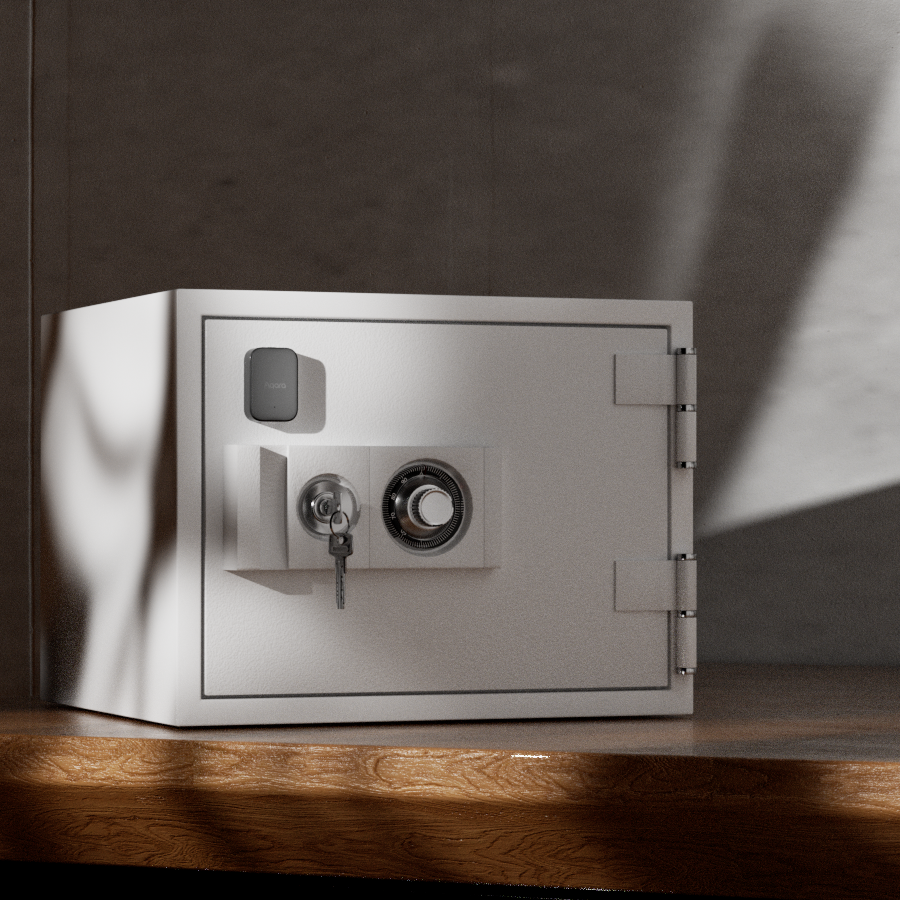

Smart multi-sensor on a metallic safe box on a wooden surface with a neutral background
Multi-State Sensor P100 with images of the sensor's uses in various scenarios.

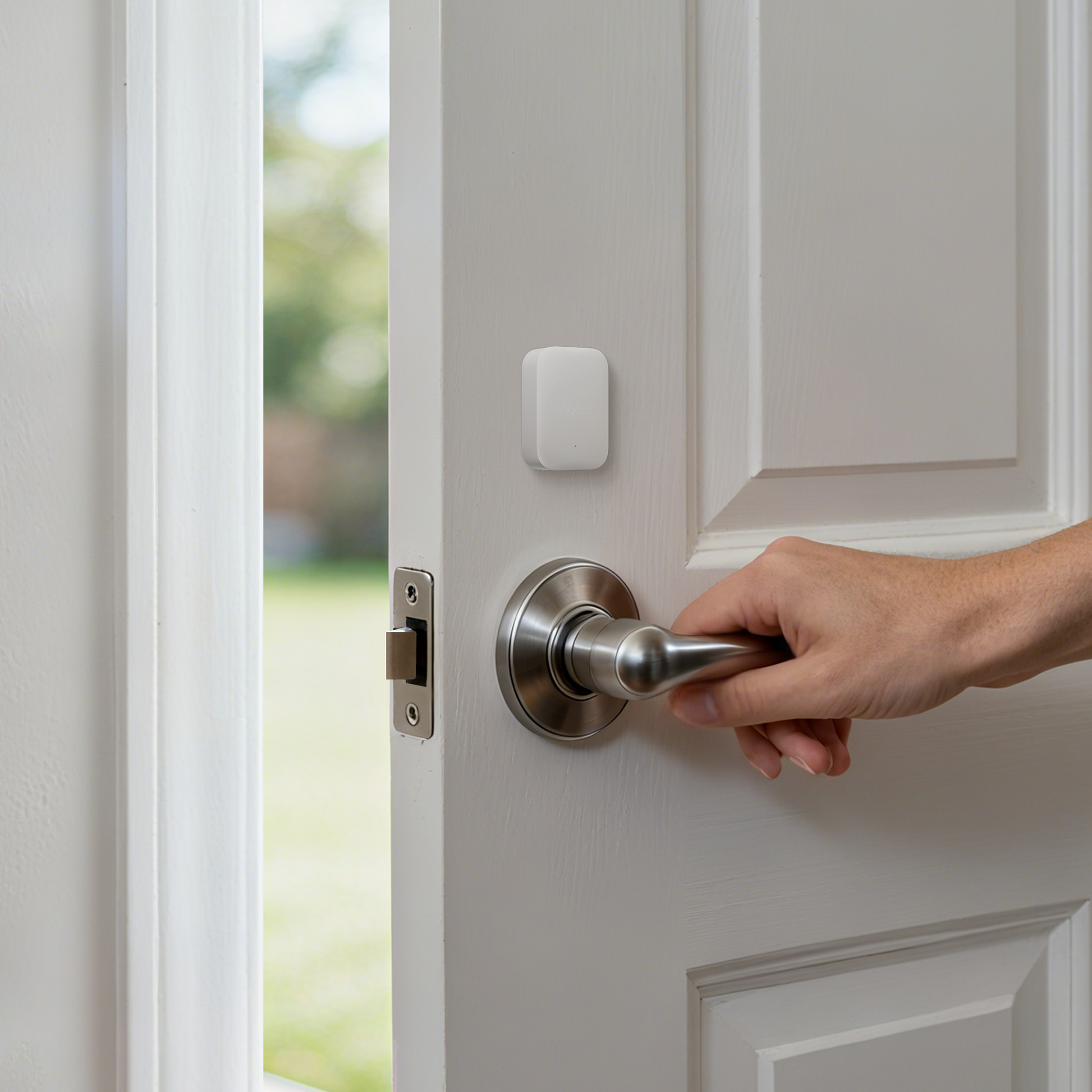

Hand opening a door with a white Multi-State Sensor P100 mounted above the door handle.
Multi-State Sensor P100 packaging
Phone case with smartphone displaying the app interface for the Multi-State Sensor P100
Smart multi-sensor on a metallic safe box on a wooden surface with a neutral background
Multi-State Sensor P100 with images of the sensor's uses in various scenarios.
Hand opening a door with a white Multi-State Sensor P100 mounted above the door handle.
$69.00

Part of a Connected Home System

Aqara

Aqara

Explore more products from Aqara

Browse Collection

Works with

Alexa Alexa
Google Home Google Home
Apple Home Apple Home
Home Assistant Home Assistant

System Requirements

Protocol
Zigbee 3.0
Matter
Subscription Required No

Explore Features

Detects open/close, tilt, vibration, temperature, and shock. Perfect for home security and automation with Aqara Zigbee hub.

Detects open/close, tilt, vibration, temperature, and shock. Perfect for home security and automation with Aqara Zigbee hub.

Sensor attached to a garage door showing tilt detection in action

Sensor attached to a garage door showing tilt detection in action

Sensor mounted on a sliding window with temperature reading displayed on smartphone

Sensor mounted on a sliding window with temperature reading displayed on smartphone

Close-up of sensor with vibration detection mode highlighted for safe or drawer monitoring

Close-up of sensor with vibration detection mode highlighted for safe or drawer monitoring

%} %} %} %} %}

Technical Specifications

General

Brand
Aqara
Model
VB-S03D (Kit), VB-S03E (Sensor)
Material
PC (Polycarbonate) + ABS (Acrylonitrile Butadiene Styrene)
Warranty
2 Years

Physical

Dimensions (Inner Panel)
45 × 31 × 13 mm (sensor body)
Dimensions (Outer panel)
125 × 68 × 32 mm (with protective cover)
Weight
20g (sensor only), 30g (with cover)
Battery Type
CR2450 × 1, 3V DC
Battery Life
2 to 3 years (ultra-low power consumption)

Technical

Installation
One-piece adhesive backing (peel and stick)
Sensors
Detection Type: 9-axis sensor (accelerometer, gyroscope, geomagnetic sensor) for open/close, orientation (horizontal/vertical/tilt), movement, fall, vibration, triple-tap
Detection Range
Indoor use only (avoid direct rain exposure)
Detection Angle
Rotational angle changes
Operating Temperature
-10°C to 55°C (14°F to 131°F)
