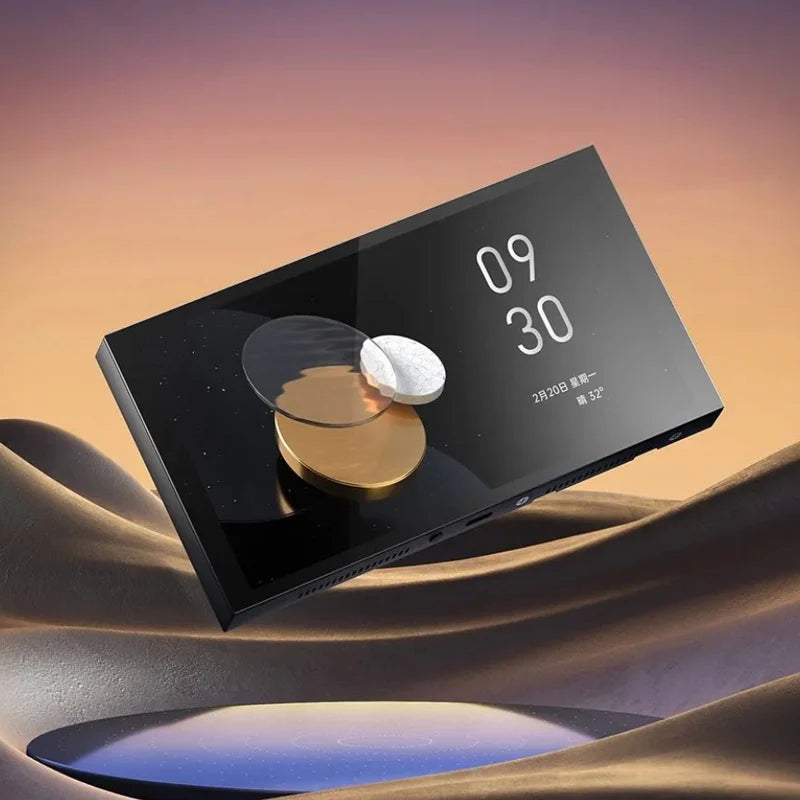

AQARA MagicPad S1 Plus

All-in-one smart control panel with touchscreen interface, built-in hub function, scene control, device management, and wall-mounted smart home automation access.
AQARA MagicPad S1 Plus
AQARA MagicPad S1 Plus
AQARA MagicPad S1 Plus
AQARA MagicPad S1 Plus
AQARA MagicPad S1 Plus
AQARA MagicPad S1 Plus
AQARA MagicPad S1 Plus
AQARA MagicPad S1 Plus
AQARA MagicPad S1 Plus
AQARA MagicPad S1 Plus
$699.00

Part of a Connected Home System

Aqara

Aqara

Explore more products from Aqara

Browse Collection

Works with

Alexa Alexa
Google Home Google Home
Apple Home Apple Home
Home Assistant Home Assistant

System Requirements

Protocol
Zigbee 3.0
Matter
Wi-Fi
Bluetooth
Subscription Required —

Explore Features

1440×720 high-resolution touchscreen with proximity sensor for auto-wake

1440×720 high-resolution touchscreen with proximity sensor for auto-wake

Built-in Zigbee 3.0 hub and Matter bridge – no external hub required

Built-in Zigbee 3.0 hub and Matter bridge – no external hub required

Real-time camera streaming and two-way audio for visitor management and monitoring

Real-time camera streaming and two-way audio for visitor management and monitoring

Up to 10 customizable dashboards with widgets, themes, and photo gallery

Up to 10 customizable dashboards with widgets, themes, and photo gallery

%}

Technical Specifications

General

Brand
Aqara
Model
MagicPad S1 Plus (MP-K01D)
Material
Plastic + glass
Warranty
1 Year (12 Months)

Physical

Dimensions
172 × 86 × 43.7 mm, Weight: ~350-360 g, Battery Type: N/A (hardwired)

Technical

Installation
In-wall (86 box, neutral required)
Maximum Load
10A per relay (2200W incandescent / 400W LED)
Number of Gangs
3 electrical relays + 6 wireless switches
Neutral Wire
Required
Rocker Type
Touchscreen
Switch Feedback

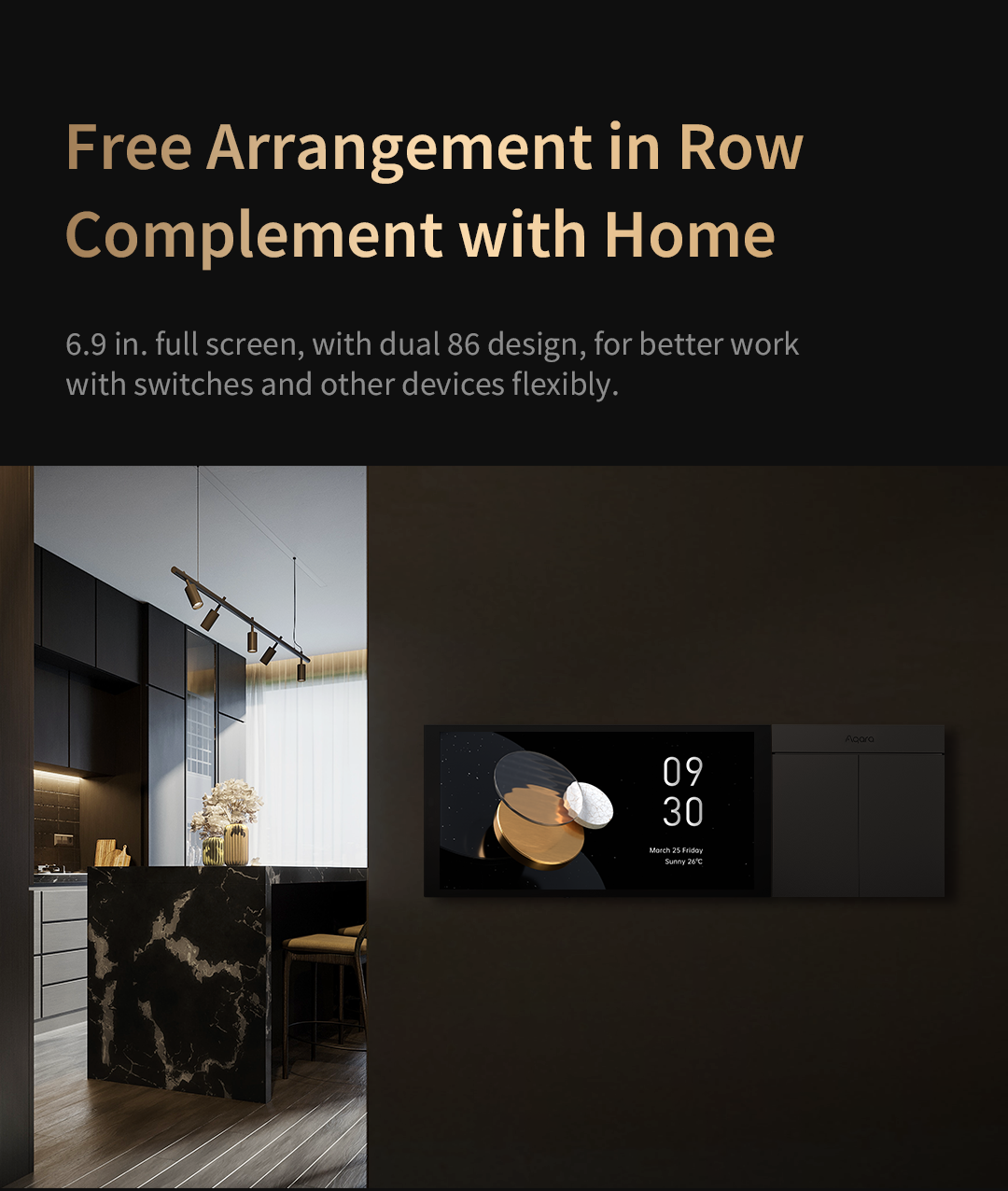

Visual + haptic. Screen: 6.9-inch, 1440×720 resolution
Built-in Hub
Zigbee 3.0 + Matter bridge
Sensors
Proximity (up to 2.5m), light sensor
Operating Temp
-10°C to 40°C
